产品 >> 硬质合金立铣刀 >>

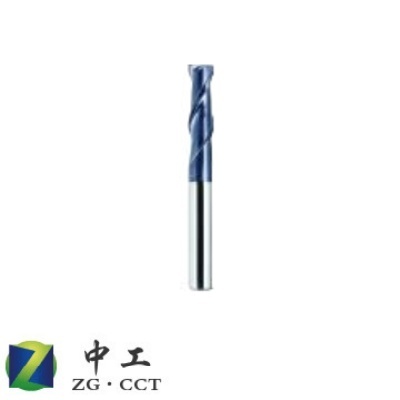

2刃平头立铣刀
- 型号：202422134137
|
牌号 |
涂层 |
适 用 范 围 |
|
ZGH |
ZH |
适用于HRC45-65高硬度工具钢、合金钢、预硬钢、淬硬钢、铸铁等材料的铣削加工 |
|
ZGT |
ZT |
适用于HRC45度以下的工具钢、碳钢、合金钢、铸铁等铣削加工 |
|
ZGL |
ZL |
适用于铜、铝合金的铣削加工 |
|
ZGN |
ZN |
适用于不锈钢、高温合金等难加工材料的铣削加工 |
球头型硬质合金整体立铣刀标准型号表
|
牌号 |
型号 |
刃直径 |
球头半径 |
柄直径 |
刃长 |
总长 |
齿数 |
|
ZGH
ZGT
ZGL ZGN |
2B-R0.5 |
1.0 |
0.5 |
6 |
2 |
50 |
2 |
|
2B-R1.0 |
2.0 |
1.0 |
6 |
4 |
50 |
2 |
|
|
2\4B-R1.5 |
3.0 |
1.5 |
6 |
6 |
50 |
2\4 |
|
|
2\4B-R2.0 |
4.0 |
2.0 |
6 |
8 |
50 |
2\4 |
|
|
2\4B-R3.0 |
6.0 |
3.0 |
6 |
12 |
50 |
2\4 |
|
|
2\4B-R4.0 |
8.0 |
4.0 |
8 |
16 |
60 |
2\4 |
|
|
2\4B-R5.0 |
10.0 |
5.0 |
10 |
20 |
75 |
2\4 |
|
|
2\4B-R6.0 |
12.0 |
6.0 |
12 |
24 |
75 |
2\4 |
|
|
2\4B-R7.0 |
14.0 |
7.0 |
14 |
28 |
75 |
2\4 |
|
|
2\4B-R8.0 |
16.0 |
8.0 |
16 |
32 |
100 |
2\4 |
|
|
2\4B-R10.0 |
20.0 |
10.0 |
20 |
40 |
100 |
2\4 |
圆弧硬质合金整体立铣刀标准型号表
|
牌号 |
型号 |
刃直径 |
圆弧半径 |
柄直径 |
刃长 |
总长 |
齿数 |
|
ZGH ZGT ZGL ZGN |
2\4R-D1.0R0.2 |
1.0 |
0.2 |
4 |
3 |
50 |
2\4 |
|
2\4R-D2.0R0.2 |
2.0 |
0.2 |
4 |
6 |
50 |
2\4 |
|
|
2\4R-D3.0R0.2 |
3.0 |
0.2 |
4 |
8 |
50 |
2\4 |
|
|
2\4R-D4.0R0.2 |
4.0 |
0.2 |
4 |
11 |
50 |
2\4 |
|
|
2\4R-D5.0R0.3 |
5.0 |
0.3 |
6 |
13 |
50 |
2\4 |
|
|
2\4R-D6.0R0.3 |
6.0 |
0.3 |
6 |
16 |
50 |
2\4 |
|
|
2\4R-D8.0R0.3 |
8.0 |
0.3 |
8 |
20 |
60 |
2\4 |
|
|
2\4R-D10.0R0.5 |
10.0 |
0.5 |
10 |
25 |
75 |
2\4 |
|
|
2\4R-D12.0R0.5 |
12.0 |
0.5 |
12 |
30 |
75 |
2\4 |
平头型硬质合金整体立铣刀标准型号表
|
牌号 |
型号 |
刃直径 |
柄直径 |
刃长 |
总长 |
齿数 |
|
ZGH ZGT ZGL ZGN |
2\3\4E-D1.0 |
1.0 |
6 |
3 |
50 |
2\3\4 |
|
2\3\4E-D2.0 |
2.0 |
6 |
6 |
50 |
2\3\4 |
|
|
2\3\4E-D3.0 |
3.0 |
6 |
8 |
50 |
2\3\4 |
|
|
2\3\4E-D4.0 |
4.0 |
6 |
11 |
50 |
2\3\4 |
|
|
2\3\4E-D5.0 |
5.0 |
6 |
13 |
50 |
2\3\4 |
|
|
2\3\4E-D6.0 |
6.0 |
6 |
16 |
50 |
2\3\4 |
|
|
2\3\4E-D7.0 |
7.0 |
8 |
20 |
60 |
2\3\4 |
|
|
2\3\4E-D8.0 |
8.0 |
8 |
20 |
60 |
2\3\4 |
|
|
2\3\4E-D9.0 |
9.0 |
10 |
22 |
75 |
2\3\4 |
|
|
2\3\4E-D10.0 |
10.0 |
10 |
25 |
75 |
2\3\4 |
|
|
2\3\4E-D11.0 |
11.0 |
12 |
26 |
75 |
2\3\4 |
|
|
2\3\4E-D12.0 |
12.0 |
12 |
30 |
75 |
2\3\4 |
|
|
2\3\4E-D14.0 |
14.0 |
14 |
32 |
75 |
2\3\4 |
|
|
2\3\4E-D16.0 |
16.0 |
16 |
45 |
100 |
2\3\4 |
|
|
2\3\4E-18.0 |
18.0 |
18 |
45 |
100 |
2\3\4 |
|
|
2\3\4E-20.0 |
20.0 |
20 |
45 |
100 |
2\3\4 |
|
|
6E-D6.0 |
6.0 |
6 |
18 |
60 |
6 |
|
|
6E-D8.0 |
8.0 |
8 |
20 |
60 |
6 |
|
|
6E-D10.0 |
10.0 |
10 |
30 |
75 |
6 |
|
|
6E-D12.0 |
12.0 |
12 |
32 |
75 |
6 |
|
|
6E-D16.0 |
16.0 |
16 |
40 |
100 |
6 |
|
|
6E-D20.0 |
20.0 |
20 |
45 |
100 |
6 |
